XLOGX 32-8 Rotary Weight Filling - Capping Mono-block
XLOGX32-8 oil filling 2-in-1 mono-block is targeting on big bottle shape high speed capping machine developed independently by Xili company with the most advanced technology in the world. The machine has a high degree of automation and intelligence, stable and reliable performance, high production efficiency and a unique solution to the drip leakage of oil filling.
Diagram below:
Main Components
|
1 |
Bottle screw drive |
2 |
Bottle inlet chain |
3 |
24 heads of filler |
|
4 |
Frame |
5 |
Oil discharge device |
6 |
6 capping heads |
|
7 |
Bottle outlet chain |
8 |
Rejection chain |
Bottle Screw Feeding
The distance between the bottles transported by the screw is equal to the distance between the star wheel drive bottles and is synchronized. Stop the equipment in time to avoid damage.
Middle Star Wheel
Middle star wheel: the star wheel is made of high polymer polyethylene. When changing the bottle shape, the whole star wheel is replaced, and the handle is replaced quickly
Oil Tank
The oil cylinder adopts the cone body, which forms the arc Angle at the welding, making cleaning more convenient and less residual. The oil cylinder bottom Angle becomes the cone surface, which can almost clean the residual materials of the oil cylinder.
Slewing Bearing
The whole machine adopts big rotary bearing imported, so that the equipment can run smoothly without vibration, with high load and long service life.
Main Technical Parameters
|
Item |
Parameters |
|
Working position |
Filler 32, capper 8 |
|
Rated capacity |
12000BPH 810ml |
|
Filling method |
Weight type filling |
|
Bottle type |
Dia φ100 ~ 160mm, Height 200 ~ 400mm |
|
Air pressure |
1Mpa |
|
Air consumption |
1m3/min |
|
Rated voltage |
380V/50Hz |
|
Main motor power |
4KW |
|
Weight |
8000KG |
RH-812 Hot - Melt Glue Labeling Machine
Main Technical Parameters
|
Item |
Parameters |
|
Model |
XLRH-812 |
|
Nominal capacity |
12000BPH (810ml) |
|
Label material |
OPP (0.045mm ≥ thickness ≥ 0.038mm) |
|
Container |
PET rectangular bottle |
|
Labeling method |
One label wrap around |
|
Glue type |
Hot melt glue |
|
Gluing method |
Rubber roller |
|
Diameter range |
50 ~ 90mm |
|
Height range |
150 ~ 370mm |
|
Number of labeling stations |
12 |
|
Chain length |
3200mm |
|
Adjustable height of chain channel |
1150 ~ 1250mm |
|
Voltage/ Frequency |
380V ± 10% / 50Hz |
|
Dimension |
2000 x 1800 x 1900mm (LxWxH) |
|
Net weight of equipment |
2200Kg |
|
Total power |
6Kw |
|
Defective rate |
Less than 0.1% |
|
Efficiency |
No less than 95% continuous 8 hours |
|
Parts of the machine adopt unique surface treatment technology, never rusting body should be corrosion-resistant, chemical-resistant cleaning, shell and surface are isi304 stainless steel, can work for 24 hours in a humid environment, corrosion-resistant material. |
|
|
The lifting system of bottle head is controlled by special reducer, which can adjust the lifting height in man-machine interface to change the bottle type conveniently, reduce the technical difficulty of the operator, and improve the work efficiency. |
|
Bottle Coder (Laser Printing)
Print Features:
- Number of text lines: limited only by character height and allowable print area
- Character height: from 1 to 500 mm
- Choice of characters: Chinese, Latin and Unicode fonts
- Wide selection of languages: English, French, Spanish, German, Italian, Arabic, etc.
- Standard coding area and focal distance (mm)
- Lens 100 x 100 / fd 140
- Pointing diode function standard offering on all laser heads
- Upload and download of messages via USB Flash Drive
- Quick connect/disconnect of laser head and accessories
- Standard I/O: Ethernet interface, USB, encoder, sensor, extractor controls, alarms, remote interlocks (dual channels)

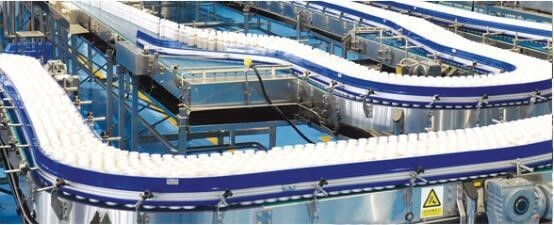

Full Bottle Conveying System
Configurations:
High efficiency SEW motor (energy efficiency IE4 level) are adopted for all motors. Each motor contains motor reducer of the same brand. The exposed bearing end should be equipped with protective cover. All motors are equipped with frequency control;
The frame is made of S/S 304, chain plate and guard plate are made of polymer plastic.
Side plate is made of 3.5mm S/S 304;

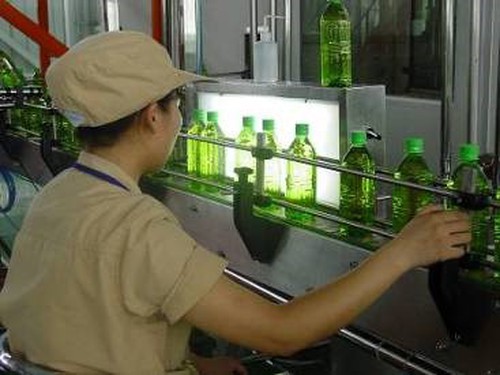

Light Inspection System
General description
Light inspection box is covered with stainless steel, with appropriate and comfortable light of national sanitary standard, which can inspect clearly the impurity, defaults and grains.
Technical parameters
Power of light pipe: 20W
Number of light pipes: 2
Pacemaker – B251 Wrap Around Carton Packer
Name: Wrap-around Case Packer
Model: Pacemaker B251
Layout drawing: See CAD drawing
Composition
Infeed conveyor
Bottle pushing device (servo motor driven)
Cardboard feeding
Case conveying device
Glue spraying device
Main frame
Safety doors
Cylinder clamping device
Forming device
Performance Parameter
Capacity: 20 ~ 25packs/min
Packing efficiency: ≥ 99%
Packing type: wrap around
Applicable bottle: Glass, PET bottle and aluminum can etc. diameter ranges: Ø50 ~ 110mm
Bottle height: H70 ~ 300mm
Carton size: L200 ~ 400mm ; W160 ~ 300mm ; H70 ~ 300mm
Full Case Conveyor (Roller Type)
Main Introduction:
Roller conveyor: the specialized design is used for the conveying of carton and plastic cases;
Structural form: according to the drive mode, it comprises the drive roller conveyor and non-driven roller conveyor; according to the arrangement mode, it comprises the horizontal roller conveyor, inclined roller conveyor and curve roller conveyor.
Adopts modular design, the standard effective width is 418mm, it can also adopt other special specifications according to the customer's requirement. It provides accumulation time for case packer and palletizer.
