Product Description
8 Cavity Rotary Blowing Machine is a machine to process various bottle products. It is mainly made of stainless steel. In this way, it has a smooth and silver finish. At the same time, it is strong to contain a large amount of fluid. The basic operation process includes performing the PET plastic, bottle blowing, then bottle filling, bottle capping and output. Many kinds of bottles such as water, juice, carbonated drink bottles are suitable for this machine.
Characters
This 8 Cavity Rotary Blowing Machine is competitive from various aspects. Firstly, it is completely sanitary as a food industrial processing machine because it is made of stainless steel 304. At the same time, it has passed the CE certification so the quality is guaranteed. Besides, it is easy to operate since it is equipped with the automatic control system. Moreover, it can resist corrosion and longer lifespan with less cost.
More Details
Condition | New |
Application | Bottle |
Plastic Processed | PET |
Blow Moulding Type | Rotary Blow Moulding machine Series |
Automatic | AUTO |
Place of Origin | Guangzhou,China |
Brand Name | XILI |
Model Number | XLRCL-8 |
Voltage | 380V/3PH/50HZ |
Power(W) | 185KW |
Dimension(L*W*H) | 4120mm×3080mm×3620mm |
Weight | 1360kg |
Certification | CE |
Warranty | One year |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description | 8 Cavity Semi Automatic Pet Bottle Blowing Machine |
Raw material | PET Preform |
Cavity number | 8 cavity |
Bottle size | 1.5L |
Bottle neck size | Φ10--20Φ |
Output | 14,000-16,000BPH |
Suitable bottle | Water Bottle,Juice Bottle,Carbonated Drink Bottle.etc |
PLC | Siemens.ect |
Key words | Pet Bottle Blowing Machine |
Machine type | Blowing Plastic Machine |
Parameter
Model | XLRCL-8 | |
Theoretical output | 14,000-16,000 pcs/h | |
Finished bottle | Max. bottle volume | 1.5L |
Max. neck diameter | 38mm | |
Max. bottle height | 380mm | |
Mold specifications | Cavity | 8 cavity |
Electrical system | Power voltage | 380v/3Phase/50HZ |
Installation power | 185kw | |
Actual power consumption | 175kw | |
Air source | Recommend air compressor | 8m³/min 30Kg |
Cooling water | Recommend water chiller | 10HP |
Blower size | Length*width*height/weight | 4120mm×3080mm×3620mm/1360kg (2 sets) |
Company Profile

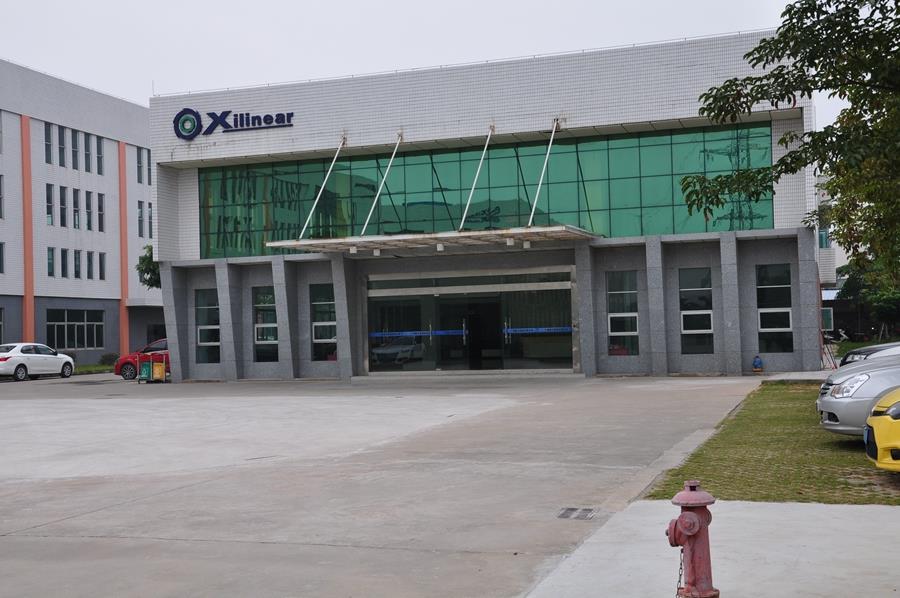

Guangzhou Xili Machinery Co.,Ltd. Is located in the state-level economic and technological development zone-Guangzhou Zengcheng Economic and Technological Development Zone. Xilinear covers an area of nearly 30,000 square meters, with the domestic PET blow molding industry’s largest modern garden-like plant, is a set of technology research and development, manufacturing and independent adle in one of the modern high-tech enterprises.
First-class manufacturing equipment supplier
Products not only provide the domestic market, while exports to over 40 countries and regions of Australia, South Africa, Latin America, Malaysia,Thailand,Pakistan,Iran,Dubai, Iraq, etc., are small and medium sized beverage and food manufacturers an important supplier.
