XLRC series fully automatic servo rotary PET blow molding machine is the most development and fully automatic rotary blow molder, our blower is a breakthrough in the field of high-speed bottle blowing equipment in China. This device can fully automatically finish the bottle preform arrangement, heating, stretching, bottle blowing technology has reached the industry leading technology level, has a high degree of automation, intelligence, mechanical performance is stable and reliable, high efficiency, low cost and can widely be used for water, juice, milk, tea drinks, functional beverages, non-gas beverage, edible oil, cosmetics, medicine containers, PET bottle production.
1、Energy saving
Guangzhou Xili Machinery Co., Ltd. promote a new generation of servo rotary XLRCL-10 blow machine to the market, the mechanical sealing, three times blowingand secondary recovery technology were adopted to our XLRCL-10, Mechanical sealing is more stable and reliable. Available recovery air to recycle used for the first and second blowing, blowing pressure incrementally three times, this kind of technology on our machine can save air consumption by 40%, so production costs save a lot.
2、Quiet

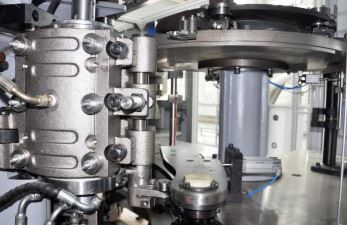

Guangzhou Xili Machinery Co., Ltd. rotary blower XLRCL-10, comparing to the traditional pin type clamping, upper and lower guide rail blower, Xilinear XLRCL-10 Intergrated advanced bearing type clamping system, with horizontal guide rail, can run more stable which greatly reduces the noise considerably. Stretching system has been adopted with servo motor with screw to allow machine to run more smoothly, more quiet and pneumatic and guide action more less. Through an air recovery system we aim to reduce emissions, and thus make the machine more quiet.
3、Smart
Guangzhou Xili Machinery Co., Ltd. rotary blower XLRCL-10, equipped with Ethernet interface, support cable network and wireless network connection to allow remote monitoring, computer and mobile real-time monitoring and diagnosis of machine fault, intelligence work.
Equipment type and technical parameters:
XLRC-02L | Project | Technical data |
Blowing cavity | 2 | |
Bottle diameter range(mm) | Ф100mm～Ф275mm | |
Bottle height range | ≤490mm | |
Bottle volume range | ≤20L | |
BPH/output | 1000BPH(20L water bottle) |
XLR-06L | Project | Technical data |
Blowing cavity | 6 | |
Bottle diameter range(mm) | Ф100mm～Ф275mm | |
Bottle height range | ≤490mm | |
Bottle volume range | ≤20L | |
BPH/output | 3000BPH(20L water bottle) |
