XLB-04CE
Condition | New |
Application | Bottle |
Plastic Processed | PET |
Blow Moulding Type | Stretch Blow Moulding |
Automatic | AUTO |
Place of Origin | Guangzhou, China |
Brand Name | XILI |
Model Number | XLB-04CE |
Voltage | 380V/3PH/50HZ |
Power(W) | 65KW |
Dimension(L*W*H) | 6200*2280*2160mm |
Weight | 620kg |
Certification | CE |
Warranty | One year |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description | 4 Cavity Semi Automatic Pet Bottle Blowing Machine |
Raw material | PET Preform |
Cavity number | 4 cavity |
Bottle size | 1250ml |
Bottle neck size | 18mm-38mm |
Output | 5000-6000BPH |
Suitable bottle | Water Bottle,Juice Bottle,Carbonated Drink Bottle.etc |
PLC | Siemens.ect |
Machine type | Blowing Plastic Machine |

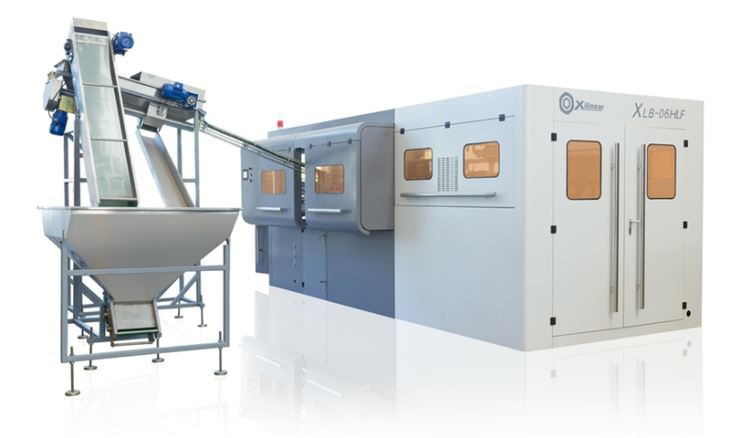

Product Description
The Plastic Bottle Production Machine is equipped with advanced process, which has longer service life for use and there is no special need of maintaining. Due to the proper size and compact design, it can be placed everywhere in order to help release space of litmed places.
The clamping part is realized by positioning the rack balance position, the latter three are the template, and the double crank arms are linked. The clamping cylinder is driven by the electromagnetic directional valve to drive the cylinder connecting rod crank arm. The heating roller chain plate of our Plastic Bottle Production Machine is detected and positioned by a work station of the stepping cylinder and a photoelectric switch. The stepping cylinder is in the promotion station and continuous production cycle. The preforms are transferred by the feeding system, and the manipulator installs the preforms on the bottle seat.
Model | XLB-04CE | |
Theoretical output | 5000-6000 pcs/h | |
Finished bottle | Max. bottle volume | 1.25L |
Max. neck diameter | 38mm | |
Max. bottle diameter | 105mm | |
Max. bottle height | 330mm | |
Mold specifications | Cavity | 4 cavity |
Mold thickness | 120mm-230mm | |
Open stroke | 240mm | |
Electrical system | Power voltage | 380v/3Phase/50HZ |
Installation power | 60kw | |
Actual power consumption | 50kw | |
Air source | Recommend air compressor | 1.0m³/min 30Kg |
Cooling water | Recommend water chiller | 5HP |
Blower size | Length*width*height/weight | 6200*2280*2160mm/620kg (2 sets) |
Exhibition show:
